Polaris Patriot Boost 850 Technical Information and Videos | Speedwerx, Inc.
To see all the Performance Parts and Accessories we offer for these models CLICK HERE
Update Feb 2024: Speedwerx Tunes and Mufflers Tested at DynoTech Research!
To see the full article from DTR CLICK HERE
Boost VR1 Low Elevation Calibration
- Stock Tune: 185.2 hp with Stock Muffler Mod
- Stage 2 - 91 Non-Oxy Pump Gas ECU Tune: 200.1 hp with Stock Muffler Mod / 200.0 hp with Std Lightweight Muffler
- Stage 2.5 - 91 Non-Oxy Pump Gas ECU Tune: 210.6 hp with Stock Muffler Mod / 212.4 hp with Std Lightweight Muffler / 213.6 hp with L2 Muffler
- Stage 4 - 110+ Octane Race Gas ECU Tune: 259.0 hp with L2 Muffler
Stock, Stage 2, Stage 2.5, and Stage 4 Tunes with Stock Muffler Mod (Black 25/Aqua 27/Pink 29) vs. Lightweight Muffler (Lt Green 39/Purple 37/Lt Blue 35) vs. L2 Muffler (Green 11/Dk Blue 13/Red 17/Yellow 53)
Product Updates Oct 2023:
PATRIOT BOOST NOTES AND SETUP INFORMATION
These machines are very sensitive to the overall set up and load from clutching and traction specifically. Mixing and matching parts from company to company is not advised, and will more than likely lead to a poor running machine. 91 Non-Oxy Gas is a must as the sled’s performance really suffers when running in Ethanol mode. Customers riding in California or other areas where 91 Octane Non-Oxy Gas is not available, we highly suggest adding some 100 LL AV Gas to your pump gas so you do not have to run in Ethanol mode.
As we have got more time on these machines, we are learning a lot more about them and what they like and do not like.
Available components and recommended combinations:
RMK Boost:
Stage 1: Stock 2023 updated ECU Tune for 91 Non-Oxy Pump Gas, Lightweight Muffler, and Hypershift Clutch Kit. Optional Intake Vent and Panel Vents also available.
Stage 2: Speedwerx 91 Non-Oxy Pump Gas ECU Tune, Lightweight Muffler, and Hypershift Clutch Kit. Optional Intake Vent and Panel Vents also available. Below 6,000’ may require a mix of 100 LL AV Gas. When 91 Non-Oxy Gas is not available, additional 100 LL fuel is recommended.
Stage 3: Speedwerx 50/50 ECU Tune for 91 Non-Oxy Pump Gas/ 100 LL AV Gas Blend, Lightweight Muffler, and Hypershift Clutch Kit. Optional Intake Vent and Panel Vents also available. Below 6,000’ may require more 100 LL AV Gas. When 91 Non-Oxy Gas is not available, additional 100 LL fuel is recommended.
Stage 4: Speedwerx 100 LL AV Gas ECU Tune, Lightweight Muffler, and Hypershift Clutch Kit. Optional Intake Vent and Panel Vents also available.
3 Stage Dash Flash: Allows you to have 3 programs installed at one time and you can change maps on your dash. $ 449.95 with Stage 2/3/4. Keep in mind with the EZ LYNK you can change maps at any time with your cell phone.
VR1 / Assault Boost:
Stage 1: Stock or Speedwerx Lightweight Muffler, and Hypershift Clutch Kit. Optional Intake Vent and Panel Vents also available.
Stage 2: Speedwerx Stage 2 - 91 Non-Oxy Pump Gas ECU Tune- 200.1 hp with Stock Muffler Mod / 200.0 hp with Std Lightweight Muffler, Stock or Speedwerx Lightweight Muffler, Hypershift Clutch Kit and High Flow Intake Vent. Optional Panel Vents also available.
Stage 2.5: Speedwerx Stage 2.5 - 91 Non-Oxy Pump Gas ECU Tune- 210.6 hp with Stock Muffler Mod / 212.4 hp with Std Lightweight Muffler / 213.6 hp with L2 Muffler, Stock or Speedwerx Lightweight Muffler,Hypershift Clutch Kit and High Flow Intake Vent. Optional Panel Vents also available.
Stage 3: Speedwerx 100 LL AV Gas ECU Tune. Will not work with Stock muffler.
Stage 4: Speedwerx 110+ Octane Race Gas ECU Tune- 259.0 hp with L2 Muffler, currently seeing 108mph in 575' in Lake Race trim. $999.95 or an additional $449.95 to upgrade from your Stage 2, 2.5, or 3 tune. Will not work with Stock muffler.
Stage 5: When you want to put the title on the line. VP C-14 Fuel required. $999.95. Will not work with Stock muffler.
3 Stage Dash Flash: Allows you to have 3 programs installed at one time and you can change maps on your dash. $449.95 with Stage 2/2.5/3, addtional $449.95 to upgrade to Stage 4 and $999.95 for Stage 5. Keep in mind with the EZ LYNK you can change maps at any time with your cell phone.
Mufflers: Our L2 and Standard Lightweight Mufflers are working great on all the available power levels. Stage 4/5 will only work with the Speedwerx mufflers, the L2 is what we suggest for these applications. We have seen issues with other mufflers on the market as they do not flow as good as the stock system, and they have a higher back pressure which throws the mapping and tuning off and makes the sleds more prone to having run-ability issues.
Stock Muffler Mod: Update Feb 2024- Now Available! We designed this Stock Muffler Mod to cope with the rules and regulations many of us are facing on the trail. This modification to the stock muffler increases the flow for the higher horsepower tunes, but keeps a stock external appearance with little change in the sound level. There is a very small gain on the stock tune but we are not really interested in that- performance tunes require a more freer flowing muffler and until now, all of those mufflers came with increased sound levels and a risk of fines in certain regions of the world. This muffler modification produces almost identical power numbers to our Standard Lightweight muffler or L2 Series muffler with our Stage 2 and 2.5 ECU tunes. The cost of the modification service is $189.95, or a modified muffler can be purchased outright for $1039.94 (OEM muffler is $849.99). We try to keep modified cores in stock and available for exchange to minimize the turn around time (subject to availability and demand).
Clutching: We focused a lot on throttle response and acceleration with our setups. RMK Models: New and Improved Calibration with our Ripper 10-2 series weights for High Elevation applications! These new setups are much more responsive, feel much more powerful, and make the sled more playful. These weights have 2 main adjustment points 1 in the body and 1 in the belly, giving you the best base weight option for these sleds with a lot of adjustability. (Weights come preset in all of our kits.) These machines are very sensitive to clutching, if they are too light on the clutching or get setup where they rev too fast, they will bog, or fall on their face consistently. They are more fun or more responsive with a lighter clutching setup though, so this can be a fine line- a guy who like to tinker and tune all the time will have fun with it, but our baseline setups are intended to be pull and go. A good example is when trail riding at slow speeds and you pin the throttle and create a lot of track spin- this is an area that can be difficult to get through. Most guys never see the trail and won’t have to worry about it, but we know lots of guys like to drag race on the trail too. Another very sensitive area is when you break traction while climbing and pull the track all the way out of the snow, and it just free wheels it will bog or sound like it dropped a cylinder. Our clutch set-ups have a lot of adjustability built into them and if you never trail ride, you can probably run a little less weight or helix and the sled will be snappier and even more responsive. VR1 models: Our Hypershift Clutch Kits are designed for everyday trail use, we like to run these at 8100-8300 rpm for these conditions. When lake racing or drag racing we are finding best results at 8050-8150 but they are a lot more prone to throwing knock codes when pulled down harder. They are more fun to ride on the trail running at the 8100-8300 rpm range though for sure.
Intake / Venting: The High Flow Intake Vent POL850T-HFI really helps the intake get even more fresh air, which helps the machines run more consistent and lowers the intake temps slightly. This also helps in deep snow conditions when the stock intake vents plug off your machine still has a good source of intake air. This helps prevent bogging and runability issues when this situation occurs. We highly suggest 2022 RMK models update to the 2023 stock intake with the extra vent too. For Panel Vent kits there are 4 options for the RMK models and 4 for the Indy models. They help keep the temps down underhood, which leads to better performance, lower clutch and belt temps, and lower intake temps. Update Feb 2024: Billet Aluminum Intake Manifold Kit Now Available!
Pipe Springs: Anything running our ECU tunes you need to double up the springs on the pipe to the y-pipe. Even on models with a stock tune this will be a good upgrade- order quantity 3 of pn ATV-SS. Even with 1 PSI of extra boost we have seen the pipe push off the manifold and cause issues.
In the WERX:
- Head Kits- These will be based off of a raw casting that will allow us to cut chambers to what we want or need and not be limited to recutting the stock heads.
- Intercooler- We are working on a water to air intercooler kit similar to what we used on our Supercharger kits. This will be huge for the mountain riding and high boost lake racing applications.
- 900 Kit- There is replacement for displacement.
If you have any questions, please contact Speedwerx at 651-982-6020 or email tech@speedwerx.com.
SPEEDWERX EXTERMINATOR KIT // POLARIS 850 PATRIOT BOOST RMK
The Speedwerx Exterminator Kit for the Polaris 850 Patriot Boost RMK combines our ECU Tune, choice of L2 Competition Series Lightweight Stainless Steel Muffler or Lightweight Ceramic Coated Mufflers, Hypershift Clutch Kit, High Flow Intake Vent, and Pipe Springs in one convenient package. Your choice of tunes will unlock maximum power and performance, the exhausts shed weight and sound great, and the clutching puts the added power to the ground. Our optional Panel Vent Kits help rid the extra heat more power and boost generates, and the EZ LYNK 3 offers diagnostics, data logging, and flashing capabilities.
- Speedwerx ECU Tune
- L2 Competition Series Stainless Steel Muffler or Standard Lightweight Ceramic Coated Muffler or Stock Muffler Mod
- Hypershift Clutch Kit
- High Flow Intake Vent
- Three additional Pipe Springs.
SPEEDWERX EXTERMINATOR KIT // POLARIS 850 PATRIOT BOOST VR1 / ASSAULT
The Speedwerx Exterminator Kit for the Polaris 850 Patriot Boost VR1 / Assault combines our ECU Tune, choice of Lightweight Ceramic Coated or L2 Competition Series Lightweight Stainless Steel Mufflers, Hypershift Clutch Kit, High Flow Intake Vent, and Pipe Springs in one convenient package. Your choice of tunes will unlock maximum power and performance, the exhausts shed weight and sound great, and the clutching puts the added power to the ground. Our optional Panel Vent Kits help rid the extra heat more power and boost generates, and the EZ LYNK 3 offers diagnostics, data logging, and flashing capabilities.
- Speedwerx ECU Tune
- Standard Lightweight Ceramic Coated Muffler or L2 Competition Series Stainless Steel Muffler or Stock Muffler Mod
- Hypershift Clutch Kit
- High Flow Intake Vent
- Three additional Pipe Springs
L2 COMPETITION SERIES LIGHTWEIGHT MUFFLER // STAINLESS STEEL // POLARIS 850 PATRIOT BOOST RMK / VR1
- Stainless Steel Construction
- 10.9 Pounds Lighter Than Stock
- CNC Machined Diffuser
- Anti-Bog Outlet
- Allows Access to Chain Tensioner Bolt without Removing Muffler
Our Boost mufflers have a CNC machined diffuser which gives you a precision fit and finish as the exhaust leaves the turbo outlet. These mufflers feature our new ANTI-BOG deep snow technology which helps prevent bogging in deep snow conditions, this design allows the exhaust to escape the exhaust outlet when the bottom of the outlet is capped off or covered in deep snow conditions. Our mufflers show a small power gain with the stock ECU programming and improved throttle response as well. The L2 muffler saves 10.9 lbs. over stock on the Boost 850 too!
The L2 Series muffler is designed to be lighter and louder than our original lightweight muffler. We always have performance on our minds and our mufflers will either perform the same or better than the stock muffler. They utilize the stock outlet location and require no chassis modifications for installation.
Competition Series Stainless Steel Muffler- POL850TM
Update Feb 2024: Speedwerx Tunes and Mufflers Tested at DynoTech Research!
L2 Series Lightweight Muffler with Stock, Stage 2, and Stage 2.5 Tunes
LIGHTWEIGHT MUFFLER // CERAMIC COATED // POLARIS 850 PATRIOT BOOST RMK / VR1
Our Lightweight Muffler cuts 8 pounds from the Polaris Boost 850 while maintaining a trail-friendly sound level!
- Mild Steel Construction with Bright Silver Ceramic Coated Finish
- 8 Pounds Lighter Than Stock
- CNC Machined Diffuser
- Anti-Bog Outlet
- Baffled Design is Quieter than Straight-Through Mufflers
- Allows Access to Chain Tensioner Bolt without Removing Muffler
Our Boost mufflers have a CNC machined diffuser which gives you a precision fit and finish as the exhaust leaves the turbo outlet. These mufflers feature our new ANTI-BOG deep snow technology which helps prevent bogging in deep snow conditions, this design allows the exhaust to escape the exhaust outlet when the bottom of the outlet is capped off or covered in deep snow conditions. Our mufflers show a small power gain with the stock ECU programming and improved throttle response as well. The Lightweight muffler saves 8 lbs. over stock on the Boost 850 too!
Our Standard Lightweight Mufflers are designed to reduce weight while keeping sound levels as low as possible. Our mufflers have more bark than stock units but we try not to make them too obnoxious. In other words, they won’t blow you off of your seat. We always have performance on our minds and our mufflers will either perform the same or better than the stock muffler. They utilize the stock outlet location and require no chassis modifications for installation.
Bright Silver Ceramic Coated Lightweight Muffler- POL850TM-1-CC
Update Feb 2024: Speedwerx Tunes and Mufflers Tested at DynoTech Research!
Lightweight Muffler with Stock, Stage 2, and Stage 2.5 Tunes
STOCK MUFFLER MOD // POLARIS 850 PATRIOT BOOST VR1 / ASSAULT / RMK
We designed this Stock Muffler Mod to cope with the rules and regulations many of us are facing on the trail. This modification to the stock muffler increases the flow for the higher horsepower tunes, but keeps a stock external appearance with little change in the sound level. There is a very small gain on the stock tune but we are not really interested in that- performance tunes require a more freer flowing muffler and until now, all of those mufflers came with increased sound levels and a risk of fines in certain regions of the world. This muffler modification produces almost identical power numbers to our Standard Lightweight muffler or L2 Series muffler with our Stage 2 and 2.5 ECU tunes. The cost of the modification service is $189.95, or a modified muffler can be purchased outright for $1039.94 (OEM muffler is $849.99). We try to keep modified cores in stock and available for exchange to minimize the turn around time (subject to availability and demand).
The base price is for the modification only- you must send us your stock muffler for exchange or modification before we will ship your order! Please include a copy of your invoice or a note with your return address and order number. The return shipping cost for the service of your choice will be added when purchasing online.
Ship to:
Speedwerx, Inc.
20195 Greystone Ave N
Forest Lake, MN 55025
Update Feb 2024: Speedwerx Tunes and Mufflers Tested at DynoTech Research!
Stock Muffler Mod with Stock, Stage 2, and Stage 2.5 Tunes
HYPERSHIFT CLUTCH KIT // POLARIS 850 PATRIOT BOOST RMK
These new setups absolutely rip and make these awesome sleds even more fun to ride. They work with the stock ECU flash and our Stage 2 and 3 ECU flashes. The throttle response, acceleration, backshifting and all-around drivability on these setups are great and you will not be disappointed. The turbo lag is very much improved on the stock ECU tune and with our Stage 2 or 3 tunes it's hardly noticeable. The kit comes with our new dual adjusting Ripper 10-2 Series Weights which come pre-set for your riding elevation, our industry leading H5 Alloy Primary and Secondary Springs, a Primary Spring Life Washer, two R2 Series Secondary Rollers to allow for a dual track helix, and a Billet Aluminum Lightweight Helix which is about .4 lbs lighter than stock.
This kit works on machines with stock tunes, and Speedwerx Stage 2 and Stage 3 tunes as well. The stock tune runs at 8300 +/- 100 rpm, and the Stage 2 and 3 tunes at 8500 +/- 100 rpm.
Kit Includes:
- Speedwerx Machined Dual Adjustable Clutch Weights (adjustments are pre-set)
- Body and Belly Weight Adjustment Kits
- H5 Alloy Primary and Secondary Springs
- Speedwerx Lightweight Two Angle Helix (saves .4lbs)

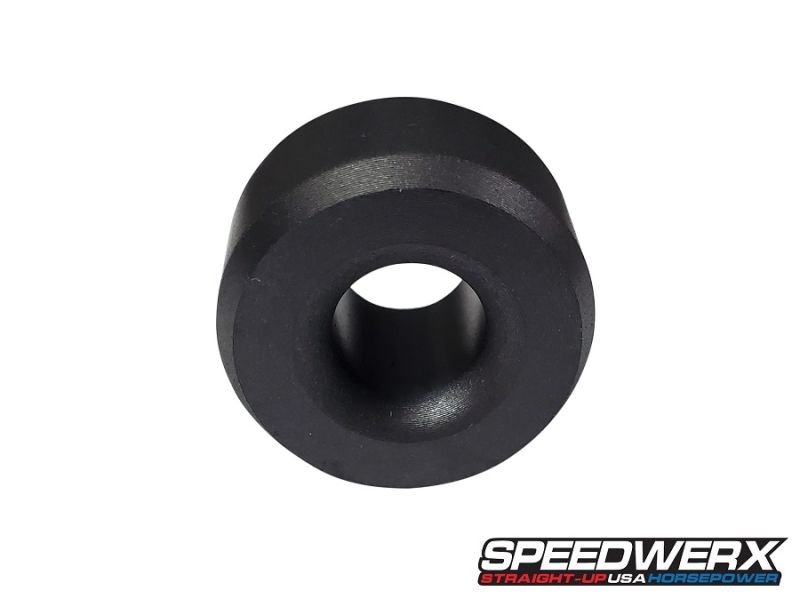

- R2 Series Bearing Grade Secondary Rollers to allow Two Angle Helix
Update 2/1/24: New and Improved Calibration with our Ripper 10-2 series weights for High Elevation applications! These new setups are much more responsive, feel much more powerful, and make the sled more playful.
HYPERSHIFT CLUTCH KIT // POLARIS 850 PATRIOT BOOST VR1 / ASSAULT
Like all of our Hypershift clutch kits this kit gives you a huge bang for your buck. This kit eliminates 99% of the turbo lag and makes this amazing sled even more wild and fun to drive. Our set up engages at 4000 rpm but is still very smooth and easy to drive on and off, even when cold going in and out of the trailer. The new profile on our BOOST specific weights loads the turbo hard to help get it spooling up and it accelerates very hard. Backshift is smooth but still spot on for every corner and stop sign.
Kit Includes:
- Boost Specific Machined Dual Adjustable Weights (adjustments are pre-set)
- Weight Adjustment Kit
- H5 Alloy Primary and Secondary Springs
- Lightweight Dual Ramp Compound Radius Helix (saves .4lbs)
- R2 Series Bearing Grade Secondary Rollers to allow Two Angle Helix
- Spider Shims
SPEEDWERX ECU TUNES // POLARIS 850 PATRIOT BOOST TURBO
Unlock maximum power and performance from your Patriot Boost with the Speedwerx ECU Tunes.
We have been focusing on drivability and throttle response with our programming and are seeing awesome results!
Available Tunes - Power Levels
Stage 2: All models - 91 Non-Oxy Pump Gas - 200.1 hp with Stock Muffler Mod / 200.0 hp with Std Lightweight Muffler
Stage 2.5: VR1 / Assault - Non- OXY Pump Gas - 210.6 hp with Stock Muffler Mod / 212.4 hp with Std Lightweight Muffler / 213.6 hp with L2 Muffler
Stage 3: RMK - 50/50 91 Non-Oxy / 100LL Av Gas
Stage 3: VR1 / Assault - 100 LL Av Gas
Stage 4: RMK - 100LL AV Gas
Stage 4: VR1 / Assault - 110+ Octane Race Gas $999.95 - 259.0 hp with L2 Muffler
Stage 5: VR1 / Assault - VP C-14 Race Gas $999.95
3 Stage Dash Flash: Allows you to have 3 programs installed at one time and you can change maps on your dash. $449.95. Keep in mind with the EZ LYNK you can change maps at any time with your cell phone.
We highly recommend using our Hypershift Clutch Kits and Lightweight Mufflers in conjuction with these ECU tunes for a tested and proven combination- mixing and matching parts from company to company is not advised and will more than likely lead to a poor running machine.
About ECU Tuning:
Throughout our extensive R & D experience, we found that recalibrating the ECU/ECM is the best way to get the most out of your machine. We do this by taking the time to go through the entire ECU and optimize it from the ground up. Something that was not commonly done in current ECU tuners. This way we can tune it to as close to perfection for every scenario to outperform your current programming configuration. Your machine will be tuned and perform just as well as a machine that was on the dyno and tested for months on end so that it excels in every situation to be smoother, faster, more efficient, and more reliable.
Speedwerx ECU Tunes with Launch Control
We have developed new versions of our ECU Tunes that comes with a harness that enables launch control or anti-lag on the Polaris Boost models. Available with our Stage 2.5, Stage 4, and Stage 5 flashes- Launch RPM and Boost data coming soon. These were developed and tested with our L2 Series Lightweight Muffler and Clutching will need to be calibrated properly to work with this as well- see related products below for our Hypershift Clutch Kits to match the tune level.
Stage 2.5: VR1 / Assault - Non- OXY Pump Gas - 213.6 hp with L2 Muffler - $849.95
Stage 4: VR1 / Assault - 110+ Octane Race Gas - 259.0 hp with L2 Muffler - $1399.95
Stage 5: VR1 / Assault - VP C14 116 Octane Race Gas - $1399.95
Please note these tunes are specific to the launch control and you must purchase the new tune of your choice- there is no upgrade option to add the launch control to our existing tunes, however you may use the EZ LYNK device to flash between the trail tunes and the launch control tune.
EZ LYNK AUTO AGENT 3 DIAGNOSTIC SCAN TOOL AND CABLES
Sending us your ECU is always the easiest and preferred way to get it done, but for those that wish to purchase a tool to flash their own ECU, we are using the new industry leading EZ LYNK Auto Agent 3 system. This will not only allow you to flash your ECU but you can also do much more.
EZ LYNK is proud to announce its third generation of the world’s most advanced vehicle diagnostic scan tool, the Auto Agent 3.
The all-new Auto Agent 3 is the vehicle interface centric to all that EZ LYNK has to offer, providing operators real-time communication with the vehicle. This allows for precise data analysis and improved vehicle diagnosis. Additionally, the new compact form expands applications in which Auto Agent users can benefit.
Not sure how to diagnose a check engine light? No problem! The EZ LYNK Cloud allows a remote connection between your vehicle and your preferred technician. This bidirectional connection allows you to share critical vehicle data & diagnostic trouble codes. This connection also allows your technician to provide important vehicle firmware updates to keep your vehicle operating in tip top shape.
Commercial Vehicle Operators can track Electronic Logs with EZ LYNK ELD. Plug & Play installation of the Auto Agent 3 provides a fast, “EZ” install in Semi-Trucks, Hot Shot Pickups, Commercial Vans, and Busses. Track Driver Logs, IFTA Fuel Tax, Receipts and Driver Inspection Reports with ease and accuracy with the EZ LYNK ELD app. (Subscription required)
Get Connected with The World's Most Powerful Vehicle Scan Tool. EZ LYNK puts your technician in the front seat whenever and wherever you choose and is the vehicle interface for all EZ LYNK apps.
- The EZ LYNK® Auto Agent® 3 Vehicle Diagnostic Scan Tool is a universal device with a standard automotive type OBDII connection.
- Powersports Diagnostic Cables- Connect the Auto Agent 3 to the factory diagnostic port on Arctic Cat, Polaris, or Ski-Doo/Can-Am Snowmobiles and UTV's.
- ECU Power-Up Adapters- Enable ECU flashing with brand-specific connectors and an extension harness with alligator clips to connect a 12 volt battery to provide power to your snowmobile when it is not running.
- NEW Speedwerx Polaris Snow ECU Flash Power-Up Cable 100EE00C19-SPX enables a direct connection to your machine's battery which makes reflashing in the field much easier versus the original EZ LYNK cable with alligator clips.
- Weather Resistant Housing- Mates with the rubber seal on any Diagnostic Cable to protect your EZ LYNK from the elements out in the field.
- Data Log live and record data to share with tuners or friends.
- Run diagnostics checks on your machine as well as several other powersports and over the road vehicles. (brand-specific cables required for other powersports machines)
- Reset power valves on Polaris 850 and 9r models.
- Flash your own ECU with optional ECU Flash Power-Up Adapter
Link to Instructions: How To Flash With Your Auto Agent 3 Device
This new twist on our Stealth Cylinder Head design is the best head option on the market to improve the throttle response and acceleration of your machine. These heads are built from raw, unfinished head castings which offers several advantages over a full billet head or our traditional Stealth Head Mod with a billet dome. Starting with a raw casting means we aren't limited to recutting an already finished stock chamber- we can shape the combustion chamber exactly how we want it just like we would with a billet piece. The stock casting also enables us to retain all of the highly engineered cooling design advantages the OEM head design provides, and works with our chamber design that increases the compression ratio to maximize power and performance on pump gas with no ECU reflash needed. They are also lighter that any billet design- the exterior profiling machibe work we do shaves .4 lbs off the stock head which puts them at .8 to 1.5 lbs lighter than aftermarket billet heads. While we were at it, the head bolt bosses were machined so the bolts are now sealed with reusable o-rings to make for an easier and cleaner installation with no silicone or sealer needed. Best of all, you get all of this with the lowest cost of any aftermarket option. Sold outright- no core exchange needed.
- Big Power Gains- +3-8 hp
- No ECU Reflash Needed
- Retains Superior OEM Cooling Design
- Lightweight- Save Up to 1.5 lbs
- Uses O-Rings on Head Bolts
- 100% Made in the USA
BILLET ALUMINUM INTAKE MANIFOLD KIT // POLARIS 850 PATRIOT BOOST VR1 / ASSAULT / RMK
The stock throttle body adapter on these machines have been prone to cracking and fatigue over time. These 6061 Billet Aluminum Intake Manifolds are not only much stronger than stock, but they are one of the trickest parts you can find. Our 5 Axis CNC machining capabilities allow us to not only make these parts faster and more efficient than the competition but they also help us create the best part for you. We have a seamless transition where all of the radiuses match up inside the boot to ensure you are getting the smoothest and best airflow routing on your intake. Others on the market use 3 Axis and or 4 Axis milling to create there parts where they have to change positions of the parts which creates rough spots on the finished part. We also split the manifold into two separate parts to reduce weight. The manifolds are also pre-drilled and tapped for 1/8” NPT for external boost reference or gauges, blow off valves, or injection. The kit comes with 2 Billet Aluminum Manifolds, 2 Reed Cage Gaskets and 2 O-Rings.
- 6061 Billet Aluminum
- 5 Axis CNC Machined
- Pre-drilled and tapped with 1/8” NPT ports for boost reference, blow off valves, or injection
- Reed Cage Gaskets included
- Utilizes the largest diameter O-Ring we can fit for a better seal and vibration reduction
- Lightest option on the market weighing only .9 lbs. total
- 100% Made in the USA
Cold Air High Flow Intake Kit // Boost RMK Models
More Air = More Power! The stock rubber hose collapses in deep snow riding, starving the engine of air. Our Cold Air High Flow Intake Kit replaces it with a rigid aluminum tube that also draws cold air from outside the hood for even more air flow, which helps the machines run more consistent and lowers the intake temps slightly. This also helps in deep snow conditions when the stock intake vents plug off, your machine still has a good source of intake air to prevent bogging and runability issues when this situation occurs. This kit comes complete with the aluminum intake tube, FROGZskin mesh cover, silicone rubber coupler, and hose clamps.
Cold Air High Flow Intake Kit // Boost VR1 / Assault Models
More Air = More Power! The stock rubber hose collapses in deep snow riding, starving the engine of air. Our Cold Air High Flow Intake Kit replaces it with a rigid aluminum tube that also draws cold air from an additional exterior vent in the hood for even more air flow, which helps the machines run more consistent and lowers the intake temps slightly. This also helps in deep snow conditions when the stock intake vents plug off, your machine still has a good source of intake air to prevent bogging and runability issues when this situation occurs. This kit comes complete with the aluminum intake tube, FROGZskin mesh cover, silicone rubber coupler, hose clamps, and a black anodized aluminum panel vent with stainless steel screen and rivets.
Lightweight Hood / Cold Air High Flow Intake
This Lighweight Polycarbonate Hood and Intake combo is 8.55 lbs lighter than stock and is the best option for eliminating bogging issues in deep snow conditions on the Boost models. On top of that it, also drops air intake temps dramatically which makes these rocketships perform even better. On a 30 second run the stock intake temps climb to 145 degrees very easily, but the temps drop 30 degrees in back-to-back tests with this hood and intake setup. This improves powerand overall performance, and reduces the chance of throwing codes that are intake temp related. Simply put, this is the lightest, best breathing, and best performing hood and intake combo on the market. Works with standard and 7S gauges and comes in a gloss black finish. 850 NA and 9R applications coming soon.
- 8.55 lbs. weight savings - complete assembly only weighs 4.25 lbs.
- Drops intake temps 30+ degrees
- Improved runability in deep snow
- Improves power and performance
- Increases turbo / intake noise
- Improves handling
These vent kits allow cool air in and hot air to escape the engine compartment- this helps to keep the clutches and belt cooler, and the intake temps lower. The aluminum frames are laser cut with a log pattern to match the stock vents and have a durable black anodized finish, and they are backed with a fine stainless steel mesh keeps the snow out. Kits comes with rivets and installation instructions. Several part numbers available for RMK, Indy, and Switchback models.
Need extra fuel for longer rides ? These Iron Dog inspired auxiliary fuel tanks are designed and proven in the roughest and toughest conditions. The system will use the fuel in the auxiliary tank first than draw fuel from your stock fuel tank. Uses stock tank mounts and velcro for safe and secure mounting. Additional tabs come with kit for extra bungie mounting for stacking gear on top of the tanks too. Fuel line NOT included.
- Adds 4.2 Gallons of fuel capacity.
- Built out of aluminum for extra strength to stack cargo.
- Uses OEM mounts and Velcro for mounting.
- Iron Dog tested and proven.
- 100% Made in the USA.
- Fuel line NOT included.
See Related Products below for the Universal Polaris/Arctic Cat/Ski-Doo tank.
This lightweight aluminum 2.5 gallon tank fits with no chassis modifications and is designed to be used with the stock fuel pump, gas cap, and seat for a quick and easy install. The original in-tank lines and pickup do need to be modified to work with this tank, or you can use use the Polaris 600R pump assembly pn 2208825 for a drop-in installation. Designed for weight-conscious racers in modified class hillclimb or drag racing applications- not only is the tank itself 5.55 lbs. lighter, but you can save over 6 lbs. for each extra gallon of fuel you don't have to add when you're not worried about the fuel sloshing around and uncovering the pickup in the larger stock tank.
Stock Tank – 12.45 lbs
Race Tank – 6.90 lbs
5.55 lbs lighter than stock, plus 6 lbs.+ per gallon less fuel carried
This race-inspired lightweight aluminum oil tank holds 1 quart of oil, which is enough for 1 tank of fuel. It uses the stock cap, sensor, lines, and pickup, and no chassis modification required for installation, so it bolts up in a matter of minutes. The smaller size also allows for extra underhood storage on top of the clutch cover. Designed for racers in modified class hillclimb or drag racing applications, or any mountain or trail rider that wants to shed some extra weight.
- Lightweight - saves up to 6.15 lbs.
- No modifications needed to install.
- Makes room for extra storage.
- 100% Made in the USA!
Stock Oil Tank - 1.8 lbs. dry / 8.8 lbs. full.
Speedwerx Tank - .65 lbs dry / 2.65 lbs full.
A-ARM BUSHING // POLARIS AXYS PRO RMK / MATRYX RMK MODELS // SET OF 16
The stock a-arm bushings are a cost-effective injection molded plastic part and because of that the tolerances are very loose and the a-arms get sloppy in hurry. Our CNC machined bushings have a much, much tighter tolerance and are made from higher quality materials to offer you a better fitting and longer lasting part. Our bushings remove all of the slop and play from the ski tip to the bulk head. Anyone who has lifted the front end off the ground and inspected the play on these areas will see right away these bushings are a 100% must have for all machines. Did we mention these are built right here in Forest Lake, MN USA?
Sold in Quantities of 16 pieces to replace all used on one machine. Replaces Polaris OEM pn 5454428 as used on the 2019-up 600/650/800/850/9R/Boost Axys PRO RMK and Matryx RMK models. Does not fit 2019 RMK 800 Assault or 2019-2022 RMK 600 144. Please check your OEM part number if you are unsure before ordering.
See below for bushings to fit the Axys/Matryx Indy/Rush/Switchback/Voyageur/Titan Models.
A-ARM BUSHING // POLARIS AXYS/MATRYX INDY/RUSH/SWITCHBACK/VOYAGEUR/TITAN MODELS // SET OF 8
The stock a-arm bushings are a cost-effective injection molded plastic part and because of that the tolerances are very loose and the a-arms get sloppy in hurry. Our CNC machined bushings have a much, much tighter tolerance and are made from higher quality materials to offer you a better fitting and longer lasting part. Our bushings remove all of the slop and play from the ski tip to the bulk head. Anyone who has lifted the front end off the ground and inspected the play on these areas will see right away these bushings are a 100% must have for all machines. Did we mention these are built right here in Forest Lake, MN USA?
Sold in Quantities of 8 pieces to replace all used on one machine. Replaces Polaris OEM pn 5450297 as used on most popular 2015-up 600/650/800/850 models. Does not fit RMK models except 2016, 2019 RMK 800 Assault and 2017-2022 RMK 600 144. Please check your OEM part number if you are unsure before ordering.
Heavy Duty Steel Suspension Shaft
Here's one case where added weight is better! This heavy duty solid steel shaft replaces the stock hollow aluminum shaft that is prone to bending in harsh racing type conditions. Fits front and rear torque arms on RMK models only.
- Race Inspired
- Direct Replacement for Polaris OEM pn 5138059
- Made in the USA!
SPEEDWERX PRIMARY CLUTCH PULLER // POLARIS RANGER / RZR AND SNOWMOBILES WITH P-22 CLUTCH
The staff at Speedwerx pulls more clutches than anyone, so we have developed these pullers to utilize the same socket that is used for the clutch bolt, saving both time and space in the process. A must have for racers and all tuners working on clutches. Heat treated and hardened for long lasting durability and finished off with black oxide coating for a great look. 100% Made in the USA!
Replaces OEM # PU-52422
BILLET ALUMINUM PRIMARY CLUTCH COVER // POLARIS P-22
These covers are not just for looks! They do look sweet but we built them with a purpose on top of that. These covers are stronger than stock and have features that help reduce flexing and fatigue over time. Machined from 6061 billet aluminum and anodized for a great looking finish.
- Added tower bushing material without sacrificing shift range (P-22 models will allow for more shifting range over stock)
- Tighter tower bushing tolerance.
- Additional support and webbing to tie clutch towers together and prevent flexing.
- Some models are lighter than stock. (ADAPT and P-85 consumer models)
- ADAPT models have increased material thickness and larger corner radiuses to strengthen failure prone areas.
- 100% Made in the USA!
SPEEDWERX LIGHTWEIGHT TEAM TSS-04 HELIXES
Our Lightweight Helixes for TEAM TSS-04 clutches are custom machined in-house- we shave off excess material to make them over 20% lighter than a stock type helix without compromising strength or durability.
Stock Polaris single ramp helix- 1.85lbs.
Standard Aftermarket dual ramp helix- 1.75lbs.
Speedwerx Lightweight dual ramp helix- 1.45lbs.
NOTE: 2021+ Polaris models require 2020-earlier rollers (460079 x2) to use any dual ramp helix. See related products below to purchase.
- 100% Made in the USA
- Used by top Snocross, Cross Country, Enduro, and Drag Racing Teams since 2017
- Replaceable Bushing
- Unlimited Angle Options
Lightweight Spring Cup // TEAM TSS-04 Driven Clutch
CNC machined from billet aluminum. 100% Made in the USA! Huge weight savings- .65 lbs lighter than stock- weighs only .25lbs. Reduced rotating weight and improved response and acceleration. Finished with a sharp looking gold hard anodized finish. Comes pre-drilled and labeled 1-4 for torsional spring applications. May effect clutching and operating RPM. Use with R2 Rollers 460079-SPX- see related products below.
New 3 roller version now available! The additional roller reduces flex and reduces drag compared to the 2 roller setup. We have seen improved backshifting and more consistent operating rpms with this part over the 2 roller part. Requires a 3 roller helix- custom order only, see related items below.
Both the 2 and 3 roller versions are available with our R2 Rollers, Thust Washers, and E-Clips to make a complete drop-in assembly.
- .65 lbs lighter than stock- weighs only .25lbs.
- 100% Made in the USA!
- Improved throttle response and acceleration.
- Comes with a Nylon Washer to reduce friction between the cup and spring.
SPEEDWERX R2 SERIES BEARING GRADE RACING ROLLER // TEAM TSS-04 WITH DUAL TRACK HELIX
Speedwerx R2 Series Bearing Grade Racing Rollers for the TEAM TSS-04, TSS-98, or Tied clutch as used in Polaris consumer snowmobiles, ATV's, and UTV's, Arctic Cat, Polaris, and Ski-Doo race sleds, and aftermarket applications. This is an upgrade from the factory rollers, use in 2021+ Polaris snowmobiles to enable use of older style dual track helixes including all Speedwerx Lightweight Helixes. Replaces Venom 460079, Arctic Cat 0648-699, Polaris 5434534- look up the OEM number or verify you have the .935" rollers for Polaris applications.. Sold individually- quantity of two required per machine!
These rollers are made from a very tough and durable bearing grade plastic. They are CNC machined for improved quality and for a good precision fit, where most stock ones are molded. They are built to withstand the toughest conditions. Our team has been using them in all types of racing and trail riding with great results.
SPEEDWERX H5 ALLOY CLUTCH SPRINGS FOR P-22 PRIMARY AND TSS-04 SECONDARY
For many years, Speedwerx had worked very hard to set the bar in performance clutch kits utilizing titanium springs. The springs and clutch kits worked perfectly, but the prices were getting higher due to the rising cost of titanium. After two years of rigorous testing, we introduced the H5 Alloy springs in 2008. The H5 Alloy springs have a 30,000 to 40,000 psi higher tensile strength compared to standard chrome silicon wire springs and they won't lose rate over time, so you can get the durability and consistent performance of a titanium spring at a fraction of the cost- they even have a 5 Year Guarantee against breakage. The H5 Alloy springs have set the new standard in performance for trail, mountain, and racing applications!
To see all the Performance Parts and Accessories we offer for these models CLICK HERE
