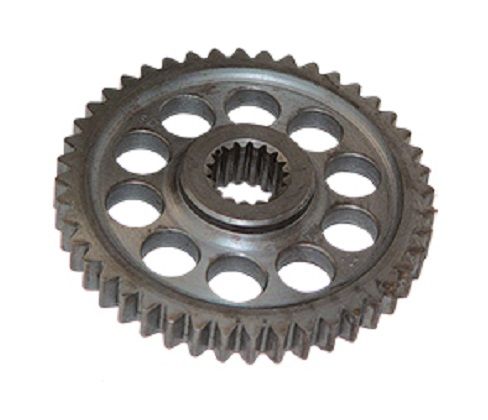

Venom Products (Team) Rexnord Bottom Sprocket - 13 Wide - 34T Internal Spline // 2012-2015 ProCross/ProClimb

Sale Price Limited to stock on hand!

To get optimal performance out of your Arctic Cat, you need to gear it right. We offer a complete lineup of gears to fit your needs. Made of heat treated, case-hardened 8620 high-alloy steel, Venom Products CNC-machined sprockets are made in an ISO 9000 certified facility right here in the USA.These are much stronger than OEM powdered metal or aluminum gears, so they're great for high horsepower machines or the demanding rider that wants superior durability.

13 Wide - 34T Internal Spline Bottom Sprockets fit many 2012-2015 ProCross and ProClimb chassis 2-Stroke and 4-Stroke models. Compatible with only Rexnord (Link Belt) Silent Chains- see pic for link style. Some models use a 13 Wide bottom sprocket in conjunction with a 15 Wide chain and top sprocket- these bottom sprockets can be used in those applications.

931064-008 36T Sprocket 34T Internal
931064-009 37T Sprocket 34T Internal
931064-010 38T Sprocket 34T Internal
931064-011 39T Sprocket 34T Internal
931064-012 40T Sprocket 34T Internal
931064-014 42T Sprocket 34T Internal
931064-001 43T Sprocket 34T Internal
931064-002 44T Sprocket 34T Internal
931064-003 45T Sprocket 34T Internal
931064-004 46T Sprocket 34T Internal
931064-005 47T Sprocket 34T Internal
931064-006 48T Sprocket 34T Internal
931064-007 49T Sprocket 34T Internal
931064-015 50T Sprocket 34T Internal
931064-016 51T Sprocket 34T Internal

The following Venom Products sprocket combinations can be used with a 90p chain on 2012+ ProCross/ProClimb models. See chart below for other ratios with the 10.16 center distance. Please note all combinations may not be suitable for every application but are shown for comparison purposes only.

19-50 – 2.63 Ratio

20-49 – 2.45 Ratio

21-49 – 2.33 Ratio

22-48 – 2.18 Ratio

23-47 – 2.04 Ratio

23-46 – 2.00 Ratio

24-46 – 1.92 Ratio

25-45 – 1.80 Ratio

26-44 – 1.69 Ratio

Other common OEM ratios for reference:

21-41 – 1.95 Ratio

21-38 – 1.81 Ratio

23-40 – 1.74 Ratio

22-37 - 1.68 Ratio

Go here to see all the Rexnord Silent and Borg Warner Hyvo Sprockets and Chains from Arctic Cat and TEAM-  Snow Performance: Drivetrain

Note: 2014+ 7000 models, and most 2016+ models use Borg-Warner Hyvo chain and sprockets- you cannot mix and match Rexnord/Link Belt/Silent and Borg-Warner/Hyvo Chains and Sprockets!  Models with OEM Rexnord Silent Chain and Sprockets may be switched to the stronger Borg Warner Hyvo Chain and Sprockets by installing the complete set. Please refer to the OEM parts diagram or open the chaincase to see what is installed on your machine before ordering- some models use the same chain and sprocket size top and bottom (ex. 13W Chain/13W Top/13W Bottom) and some may have an upsized chain and top sprocket (ex. 15W Chain/15W Top/13W Bottom).
