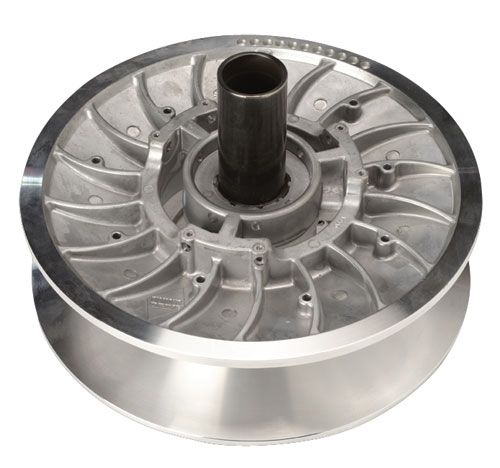

Xtreme 10.4'' Conversion Kit // Arctic Cat ACT Diamond Drive Secondary Clutch
Used as an OE Replacement or an upgrade for ACT Diamond Drive models with the 10" Clutch.
10.4" ACT Diamond Drive Secondary Clutch
Black Diamond’s 10.4” Conversion Kit™ produces improved shifting characteristics and reduced belt slippage. The 10.4” Conversion Kit’s™ larger outside diameter produces a lower gear ratio at engagement giving the Diamond Drive an even smoother drive away. While at the top end the larger diameter allows for more contact surface area with the belt. The increased contact area minimizes the belt slippage allowing the clutch to run cooler and more efficient. The 10.4” Conversion Kit comes with factory balanced sheaves. You utilize the cam, spring and rollers you already own and reassemble with the new sheaves to complete the clutch. This is also a direct replacement for all Diamond Drive models with a 10.4" diameter driven clutch from 2006 and newer. Made in the USA
** 2005-2006 models with the threaded adjuster also need to upgrade to part number 50001-BK adjuster which isn't threaded- see related item below.
BELT APPLICATION AFTER 10.4" UPGRADE:
| PART# | DESCRIPTION |
| 0627-044 | 2005-2006 Firecat with 10.4" Converison |
| 0627-045 | 2004-2006 ZR 900 with 10.4" Conversion |
| 0627-046 | 2005-2010 600/700/800 M-Series/Crossfire with 10.4" Conversion |
| 0627-060 | 2005-2007 1000 M-Series/Crossfire with 10.4" Conversion |
| Manufacturer | Black Diamond Xtreme |
|---|
